Paint Coating Thickness Tester Gauge 0-1250um Dual Magnetic Eddy Current Micron Coating Thickness Gauge Meter Tester for Car Paint Metal Automotive

Specifications: Material: ABS Sensor Probe: Fe/NFe Working Principle: Magnetic induction/Eddy current principle Minimum Curvature Radius: 1.5mm/3mm Diameter of Minimum Area: 7mm/5mm Basic Critical Thickness: 0.5mm/0.3mm Measuring Range: 0~1800μm Guaranteed Tolerance(of reading): 0~1000: ±(2.5%+2μm), 1000~1800: ±(3.5%) Resolution: 0~100μm: 0.1μm, 100~1000: 1μm, 1000~1800μm: 0.01μm Low Range Precision: 0.1μm Operating Environment: 0~40℃(32~104℉), 20%~90%RH Power Supply: 2 * 1.5V AAA battery (NOT included) Item Size: 113.5 * 54 * 27mm / 4.47 * 2.13 * 1.06in Item Weight: 185g / 6.52oz Package Weight: 816g / 28.80oz Package Size: 27.5 * 19 * 7.5cm / 10.83 * 7.48 * 2.95in Packing: 1 * Thickness Gauge 1 * USB Cable 1 * CD 1 * Calibration Iron 1 * Calibration Aluminum 5 * Calibration Coating Film 1 * Carrying Case

• Wide Measurement Range:Utilizes advanced magnetic induction and eddy current principles for precise coating thickness measurement，Capable of measuring coating thickness from 0 to 1800μm, accommodating various automotive paint and metal applications.
• High Accuracy and Resolution:Guaranteed tolerance ensures accuracy: ±(2.5%+2μm) for readings up to 1000μm and ±(3.5%) for readings from 1000 to 1800μm. Offers resolutions as fine as 0.01μm for precise results.
• Material Compatibility:Equipped with Fe/NFe sensor probe, enabling measurements on both ferrous and non-ferrous surfaces.

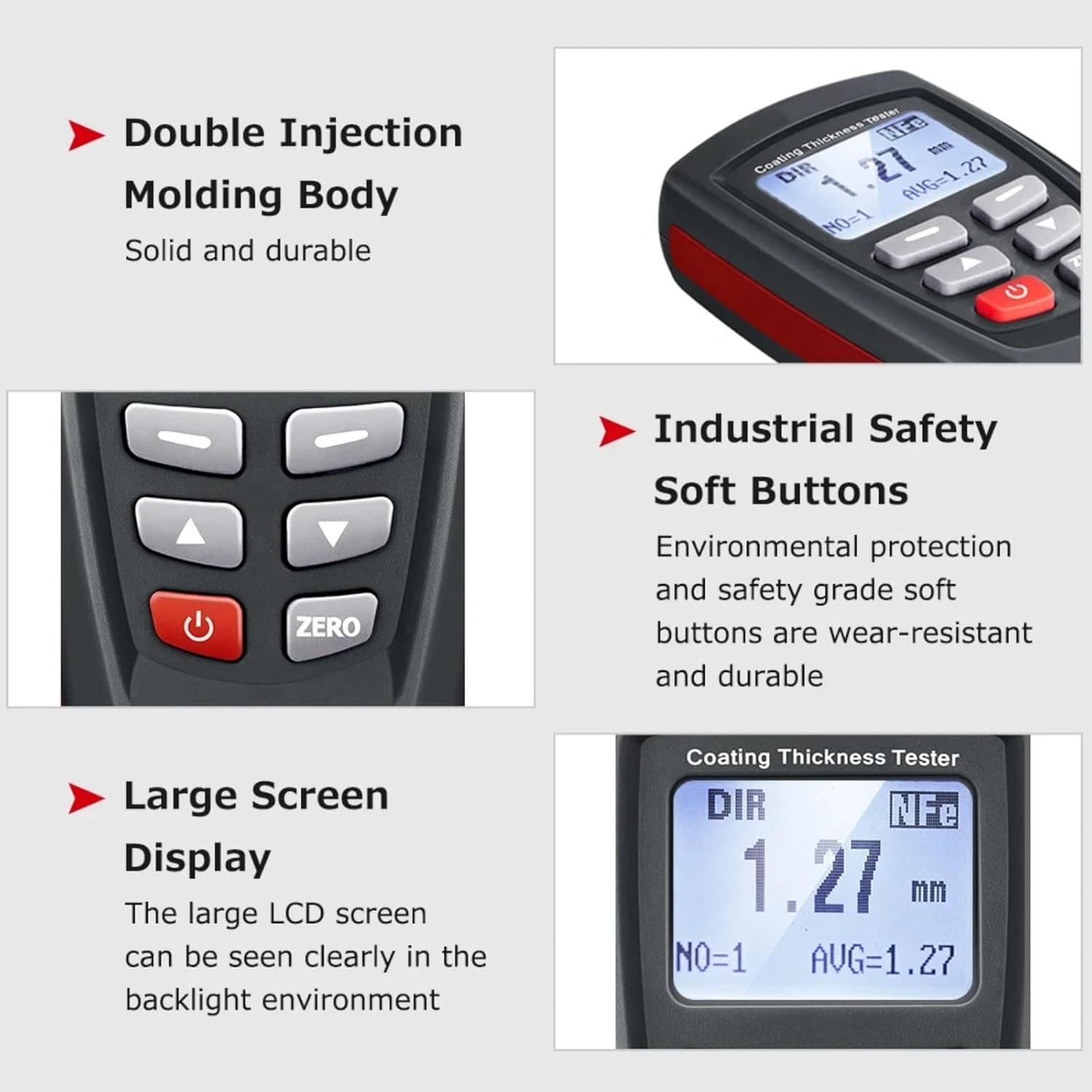

• User-Friendly Design:Compact ABS construction with intuitive controls and clear display for easy operation. Portable and suitable for use in various environments.
• Comprehensive Accessories:Includes calibration tools (iron, aluminum, coating films), USB cable, CD, and carrying case for accurate measurements and convenient storage.
