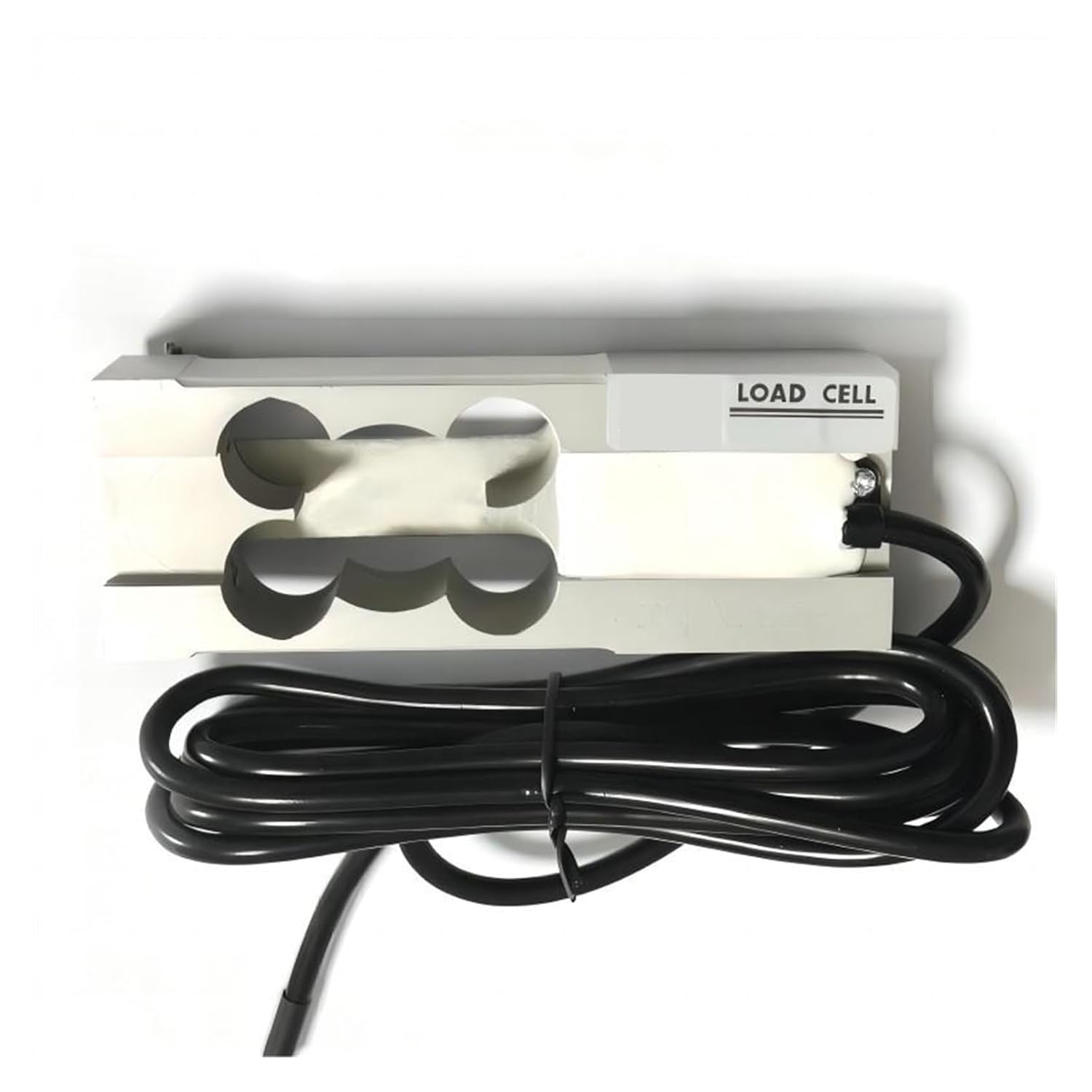

L6C-C3 Parallel Beam Load Cell 3kg 5kg 8kg 10kg 15kg 20kg 30kg 50kg High-Precision Weighing Sensor for DIY Electronic Scale for DIY Electronic(8KG)
Product details
| Management number | 221500008 | Release Date | 2026/05/03 | List Price | US$25.69 | Model Number | 221500008 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
L6C-C3 Parallel beam load cell 3kg 5kg 8kg 10kg 15kg 20kg 30kg 50kg with high anti-corrosion performanceProduct ParamentersTheory : Resistance SensorUsage : vibration sensorModel Number : L6C-C3Material : MetalType : vibration sensorOutput : Analog SensorRated load : 3/5/8/20/30/50KGMaximum degree of verification : 3000NmaxComprehensive error : ±0.020%FSCreep : ±0.0167%FS/30minEffect of temperature on sensitivity : ±0.0175%FS/10Effect of temperature on zero output : ±0.020%FS/10Output Sensitivity : 1.9±0.2mV/VInput impedance : 409±6Output impedance : 350±3Insulation impedance : 5000(50VDC)MZero output : 2%FSTemperature Compensation range : -10~+40Allowable temperature range : -30~+70Recommended excitation voltage : 5~12(DC)VMaximum excitation voltage : 18(DC)VSafety overload range : 150%FSLimit overload range : 300%FSFour-angle error : 0.02% loading value/100mm
- Creep : ±0.0167%FS/30min Effect of temperature on sensitivity : ±0.0175%FS/10 Effect of temperature on zero output : ±0.020%FS/10
- Output Sensitivity : 1.9±0.2mV/V Input impedance : 409±6 Output impedance : 350±3
- Insulation impedance : 5000(50VDC)M Zero output : 2%FS Temperature Compensation range : -10~+40
- Allowable temperature range : -30~+70 Recommended excitation voltage : 5~12(DC)V Maximum excitation voltage : 18(DC)V
- Safety overload range : 150%FS Limit overload range : 300%FS
| Color | Silver |
|---|---|
| Brand Name | JCKJEDAT |
| Part Number | TFYATAUBU-SILVER-8KG |
| Manufacturer | JCKJEDAT |
| Weight Capacity Maximum | 1 Grams |
