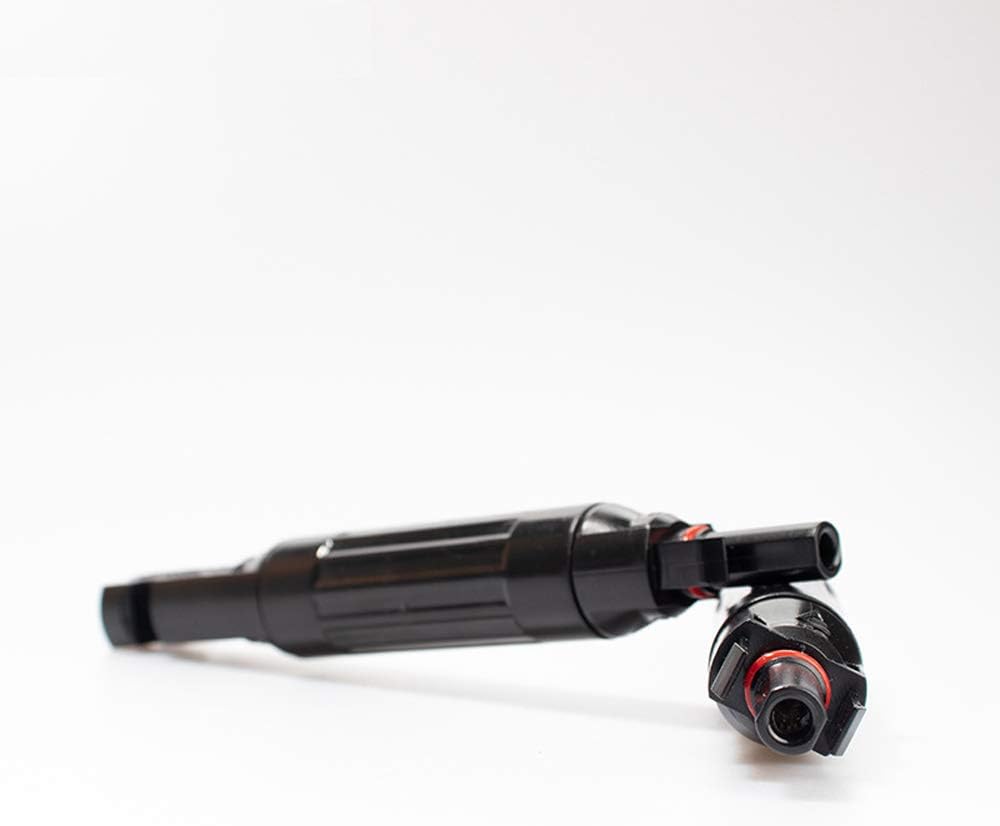

BAYM Solar Panel Cable Connector 10A 15A 20A 30A in-Line Fuse Holder 10x38mm Solar Wire Connector PV System Waterproof(20A 10pcs)

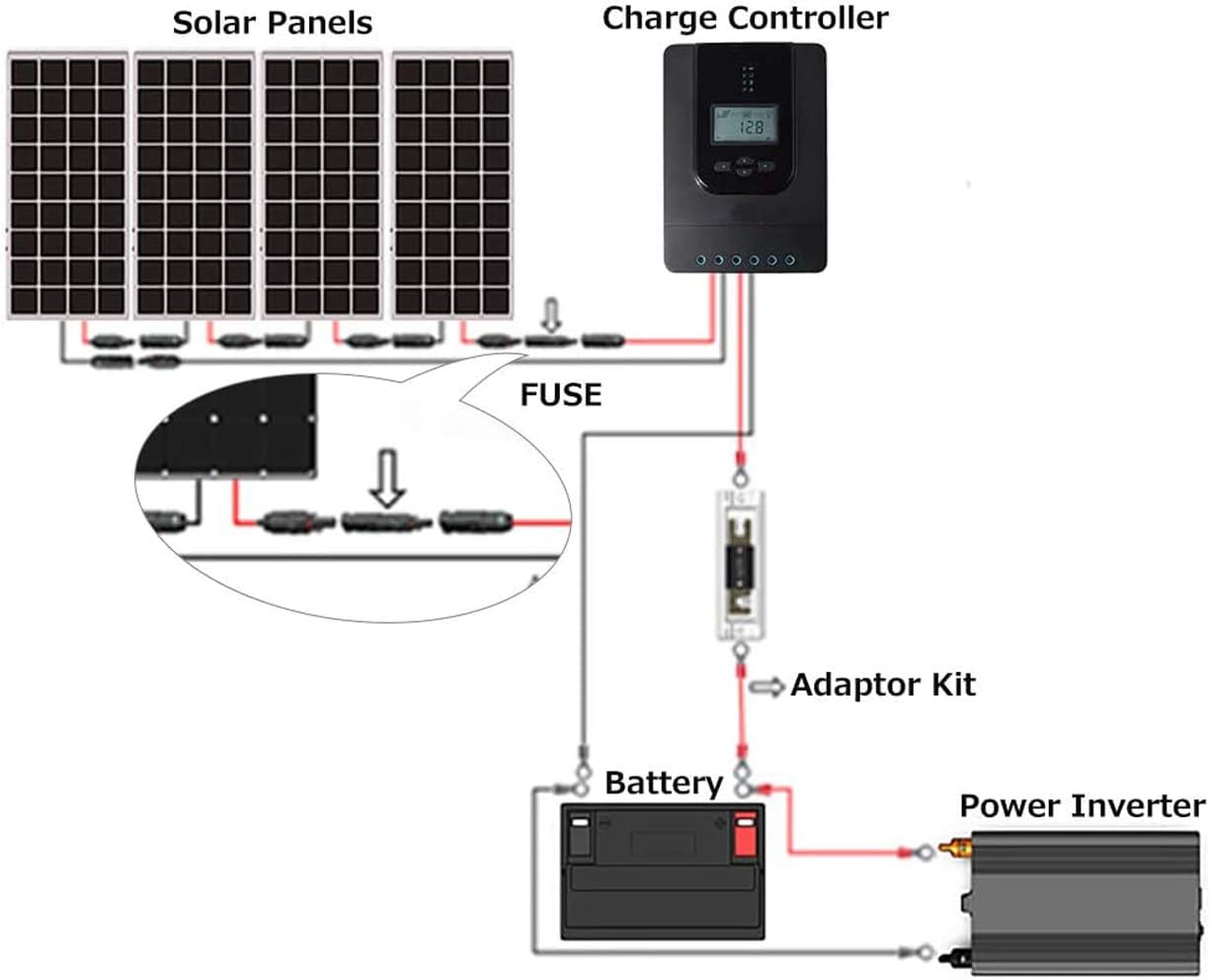

BAYM Electric Co., Ltd is experienced in photovoltaic connector production. We have passed ISO9001 management system certification and China CQC certification. BAYM Connectors are used for parallel connection between solar panels, so will maintain the voltage of your panel configuration to match your Solar On/Off -Grid System.Function: Solar fuse Inline holder is a 10A,15A,20A,30A gPV fuse embedded into a waterproof fuse holder. It features a solar connector lead on each end, making it compatible for use with an Adaptor Kit and solar panel leads. Solar Fuse Holder is designed to provide complete single circuit protection to your solar power array. The fuses prevent the over-load current from damaging the solar panels and Inverter. Specifications ❶Brand: BAYM ❷Fuse Current:20A ❸Fuse Shape: Bar ❹Size of in-line fuse: 10x38mm ❺ Pin Dimension:4.0mm ❻Insulation Material:PPO/PC/ABS ❼Contact Material: Copper Tin Plated ❽Rated Voltage:TUV 1000V DC / UL 600V DC ❾Test Voltage:TUV 6000V AC (50Hz,1Min)/UL 2200V DC (50Hz,1Min) ❿Contact Resistance:≤1mΩ ⓫Pollution Degree:2 ⓬Safety Class: II ⓭Ambient Temperature:-40℃~+85℃ ⓮Highest Temperature:+125℃ ⓯Flame Class:UL94-V0 ⓰Locking System: Snap-in ⓱Insertion / Withdrawal Force: ≤50N / ≥50N ⓲Waterproof Class:IP67 suitable for outdoor harsh environments ⓳Suitable for Cables: 2.5mm²( AWG14 ), 4mm²( AWG12 ), 6mm²( AWG10 )Package Include: 10pcs 20A Fuse Connectors Each Inside 1pc Fuse20 YEARS WARRANTY AND BEST AFTER-SALE SERVICE CAUTION: Do not open this fuse holder under LOAD ！！！

• PPO INSULATION FLAME RETARDANT MATERIAL with excellent aging resistance and UV endurance, can resist severe weather such as heavy rain,snowstorm or heat for a long time; WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion.
• Practical and easy connector used between Solar panel and switch box to prevent the reversal of current.
• Contacts for the connector are copper coated with tin for easy solder adhesion.
• Each end nuts comes with rubber bushings for air tightening.
• TUV approved & Quick and easy connection of the solar cables to the photovoltaic system (solar panels, converters). Free Sample is available.
