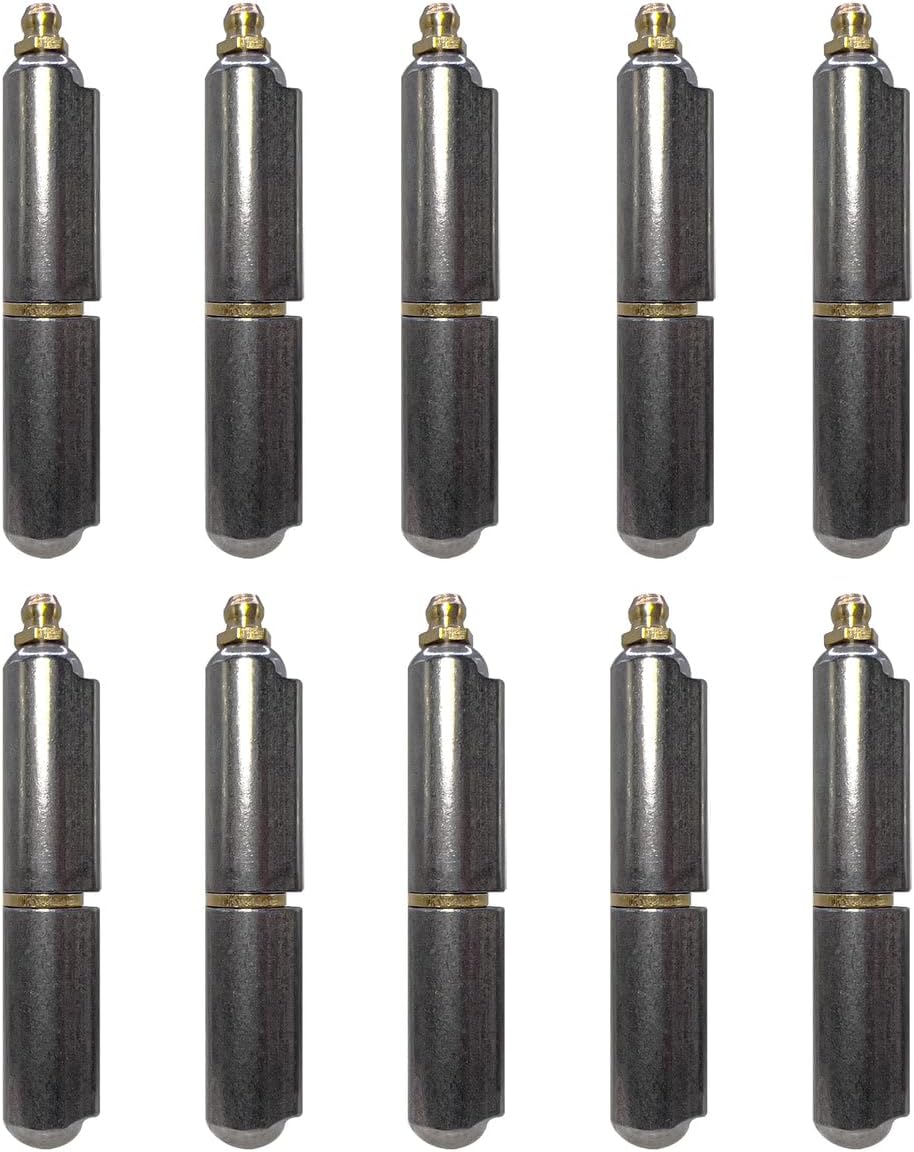

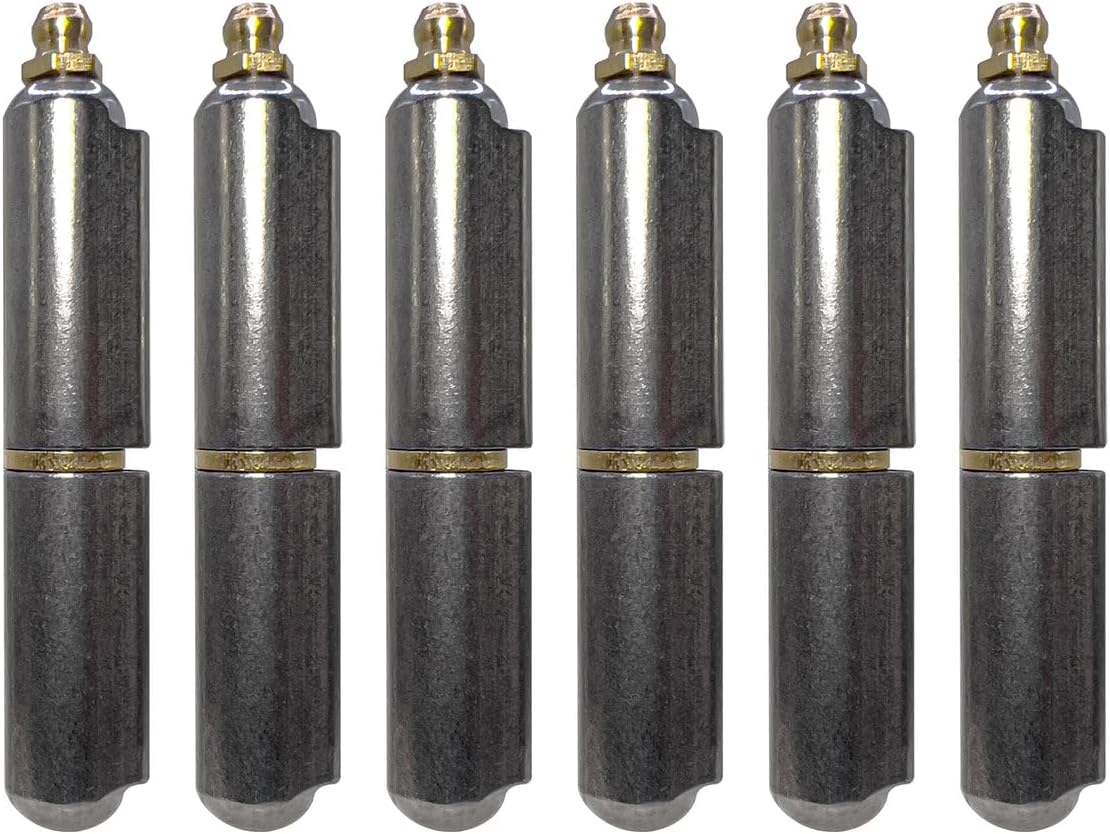

3” Inch Weldable Bullet Hinge – Heavy Duty Barrel Hinges – Weld On Gate Hinges – Weldable Door Hinges – Weld BBQ Smoker Hinge – 3" Inch x .61" Inch – Heavy Duty Steel Teardrop Body Pin Grease Zerk

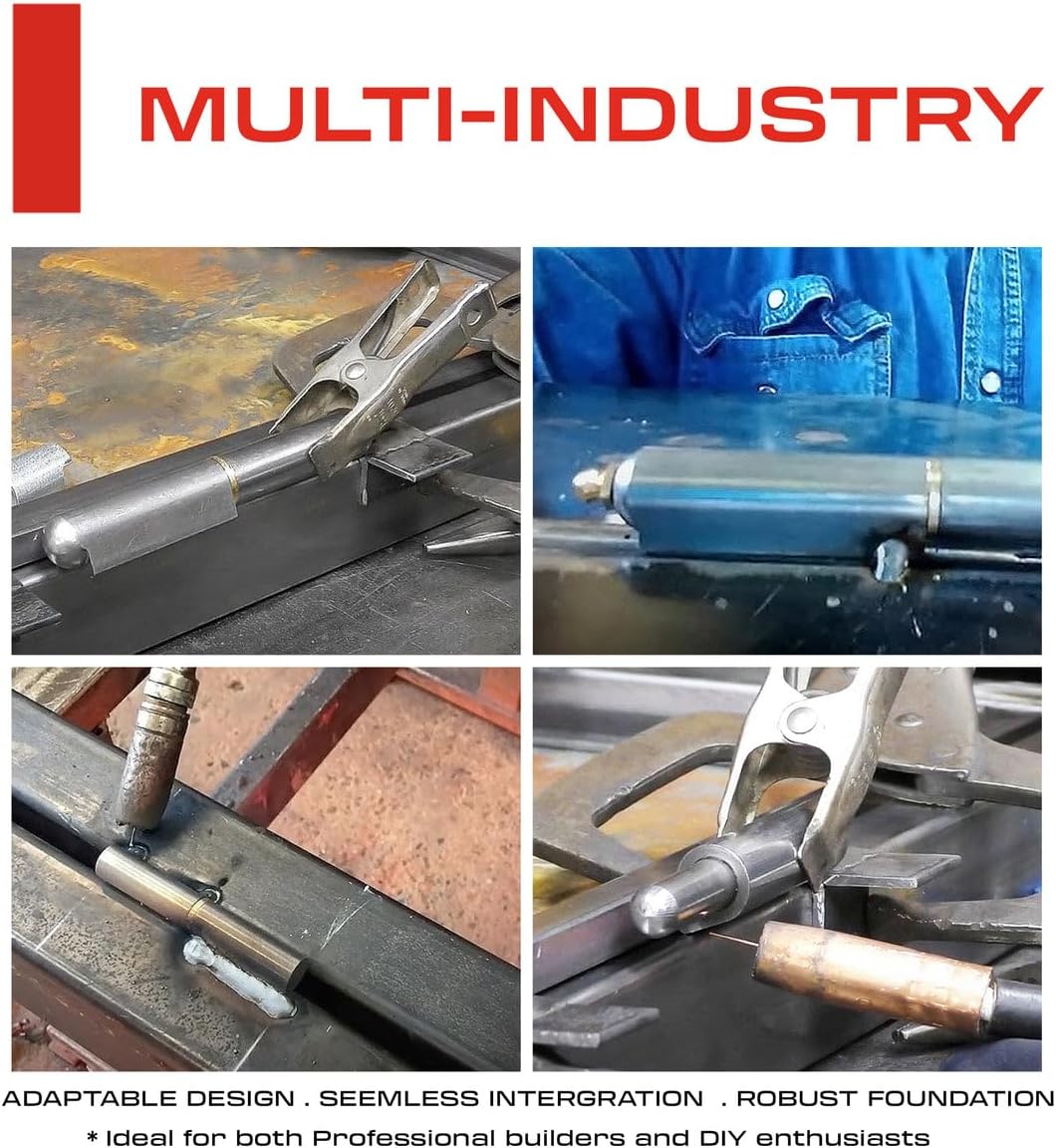

Sidco Supply’s Heavy Duty Metal Weld On Bullet Hinges are the ultimate solution for heavy-duty projects including industrial, commercial, and residential applications. Engineered for weldable hinge projects such as gates, metal doors, iron doors, swing gates, toolboxes, trailer ramps, trailer gates, BBQ Smokers, and DIY applications. Our Heavy-Duty Weldable Bullet Tear Drop Hinges are specially designed for durability and smooth operation for your weld-on hinge projects. These high-performance barrel hinges combine robust construction with a sleek, decorative tear-drop modern finish, making them the ideal choice for both heavy-duty and aesthetic applications.

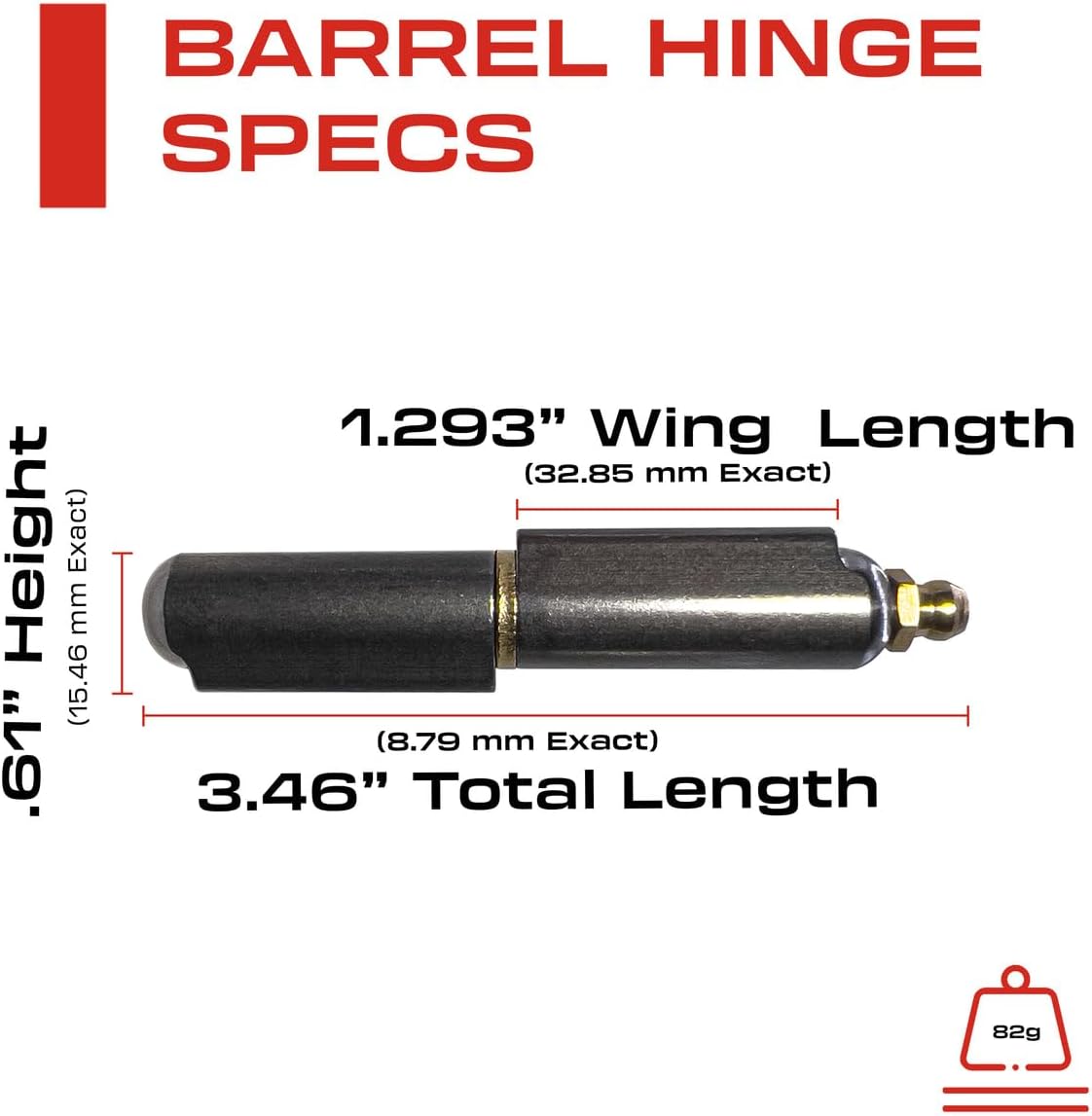

• Specifications: 3 x .61” Inches (8.79 x 15.46mm) Length & Width, 0.079" (2mm) Weldable Wing Width, 1.293” (32.85mm) Wing Length, 0.31" (7.96mm) Pin Diameter, 2.892oz (82g) Weight, 0.51” (12.95mm) Brass Washer Width, 0.3175” (8.06mm) Brass Washer Opening, 0.0785” (2mm) Brass Washer Thickness, ¼” (6.65mm) Zerk Head, 5/16” (8mm) Zerk Hex, 310 lbs load capacity per pair
• Heavy Duty – Weldable steel barrel hinges constructed from premium grade carbon steel offering exceptional strength and performance to withstand the heaviest doors, gates, and projects up to 310 lbs a pair.
• Smooth Operation – Equipped with a brass washer to prevent the hinge from binding, offering a silent, smooth, frictionless movement, even under the most demanding conditions. Engineered to provide a 180-degree rotation allowing gates and doors to swing and operate smoothly while preventing unnecessary wear and tear.
• Durability – Paint-ready polished steel finish built to endure the toughest conditions, our heavy-duty bullet weldable barrel hinges are the ultimate choice for securing gates, doors, Smokers and various projects in demanding environments.
• Easy Maintenance – Includes a handy grease zerk to lubricate with a grease gun at any time. The built-in teardrop wings are used to hold the proper gap between the barrel of the hinge and the surface. Recommended reapplication of grease every 2-3 Years.
