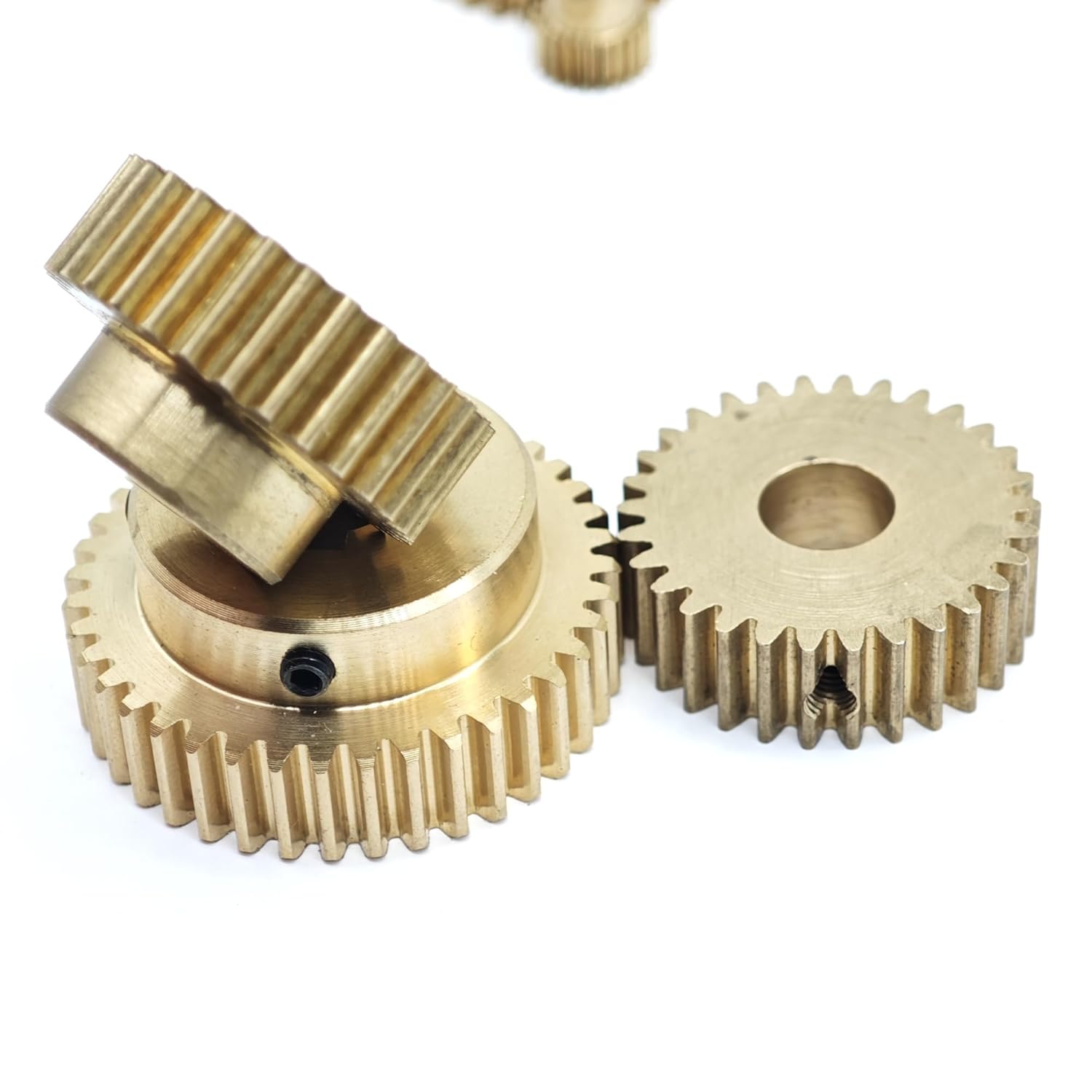

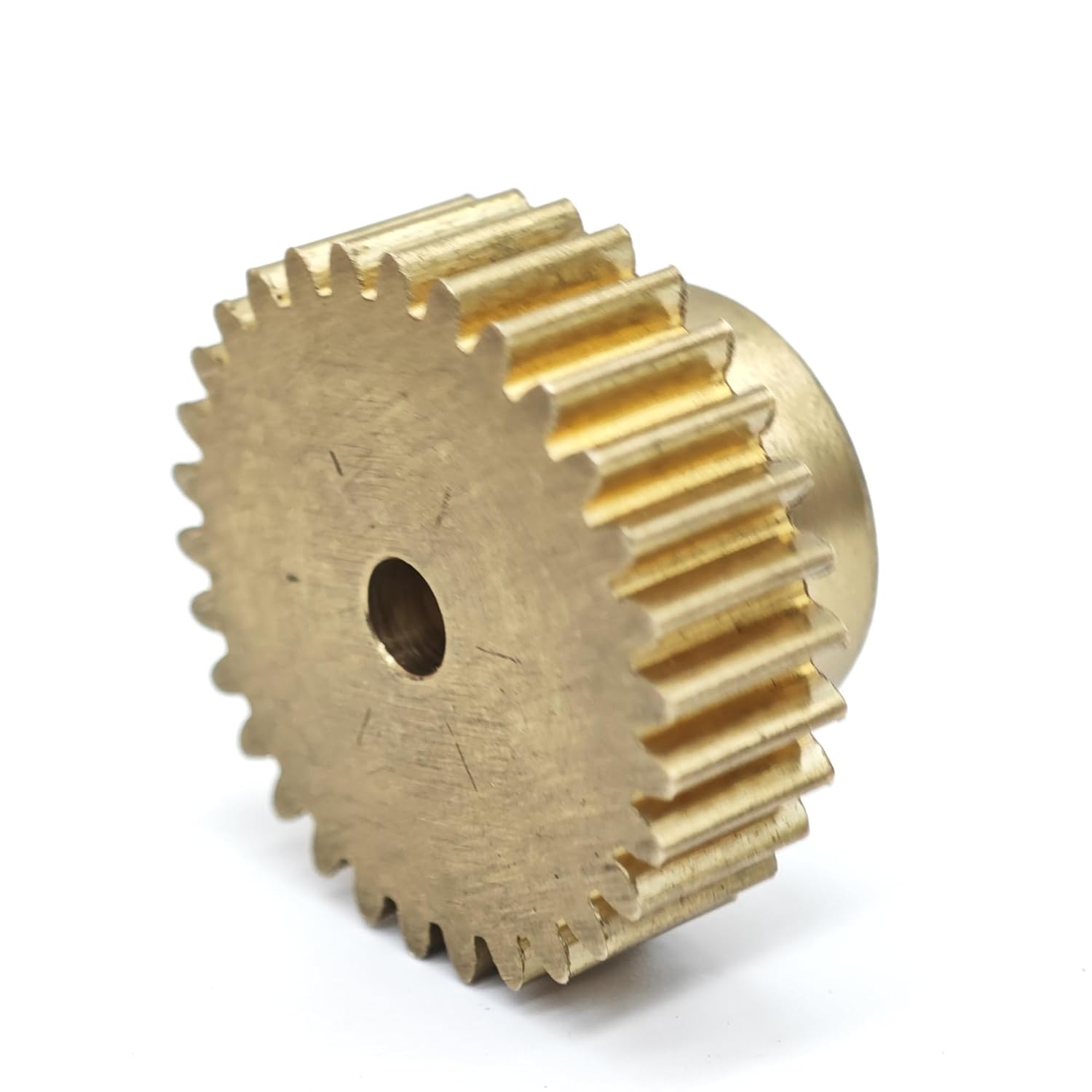

0.6M 74T Brass Spur Gear 5mm Teeth Thickness Straight Pinion 0.6 Module 74 Teeth Cylindrical Gear with Step Mechanical(15mm bore)
Product details
| Management number | 220411933 | Release Date | 2026/05/03 | List Price | US$12.07 | Model Number | 220411933 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Material: CopperModel: 0.6 module 74 teeth Teeth Pitch: 1.88mmTeeth Depth: 1.35mmTeeth Thickness: 5mmTotal Thickness: 10mmTeeth Diameter: 45.6mmPitch Diameter: 44.4mmStep diameter: 20mm (Note: the diameter of the step is not fixed, it varies according to the selection of the bore) Screw: M3 screw
- Material: Brass, Model: 0.6 module 74 teeth
- Teeth diameter: 45.6mm, pitch diameter: 44.4mm
- Optional Hole: 3mm, 3.17mm, 4mm, 5mm 6mm, 6.35mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm
- Brass Construction: Crafted from premium brass, our pinion gears boast exceptional wear resistance, superior strength, and remarkable hardness
- Easy Installation: Designed with a uniform diameter, our pinion gears are incredibly easy to install. The surface of the gear teeth facilitates straightforward assembly
| Brand Name | ELILANEY |
|---|---|
| Part Number | HBQCZRCCN-15MMBORE |
| Manufacturer | ELILANEY |
